We can supply all of the Twinwall and Rigiduct range on a next-day basis. See below for the complete range, the highlighted ones are stock items we hold for immediate delivery.
If you were looking for drainage products, see our range from Marley Drainage here.

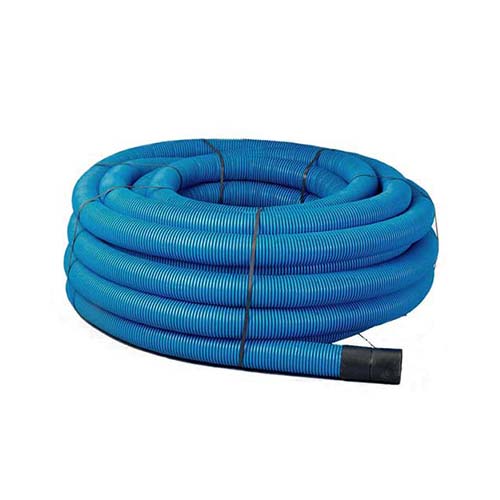

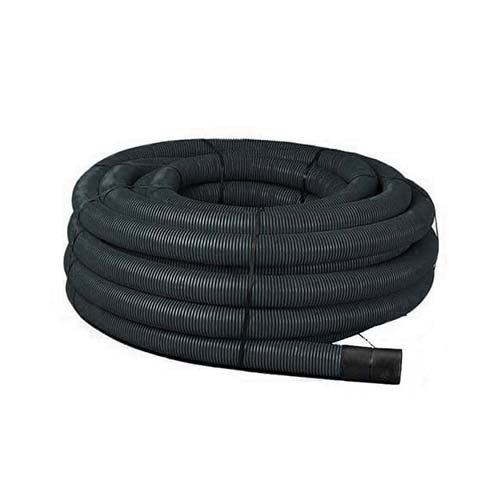

Twinwall ducting
Manufactured from High Density Polythene (HDPE), Twinwall ducting has a smooth internal bore and a corrugated external wall providing excellent impact resistance, strength and durability. Lightweight and flexible, it comes with a draw string for attaching a draw cord to enable pipes and cables to be pulled through after installation.
 |  |  |
Joiners and bends (90°, 45° and 22.5°) are generally black and available from stock.
| ID/OD | Length | Elec | Gas | Water | Mway | Street | CCTV | Coupler | Bends |
|---|---|---|---|---|---|---|---|---|---|
| 32/40 | 50m | Y | N | N | N | N | N | Y | N |
| 40/50 | 50m | Y | N | N | N | N | N | Y | N |
| 50/63 | 50m | Y | Y | Y | Y | Y | Y | Y | N |
| 60/75 | 50m | Y | N | N | N | N | N | Y | N |
| 75/90 | 50m | Y | N | N | N | N | N | Y | N |
| 94/110 | 6m | Y | Y | Y | Y | Y | Y | Y | Y |
| 94/100 | 50m | Y | Y | Y | Y | Y | Y | Y | Y |
| 137/160 | 25m | Y | N | N | N | N | N | Y | Y |
| 137/160 | 50m | Y | N | N | N | N | N | Y | Y |
| 150/178 | 6m | Y | Y | Y | Y | Y | Y | Y | Y |
| 225/266 | 6m | Y | Y | Y | N | N | N | Y | Y |
| 300/354 | 6m | Y | Y | Y | N | N | N | Y | Y |

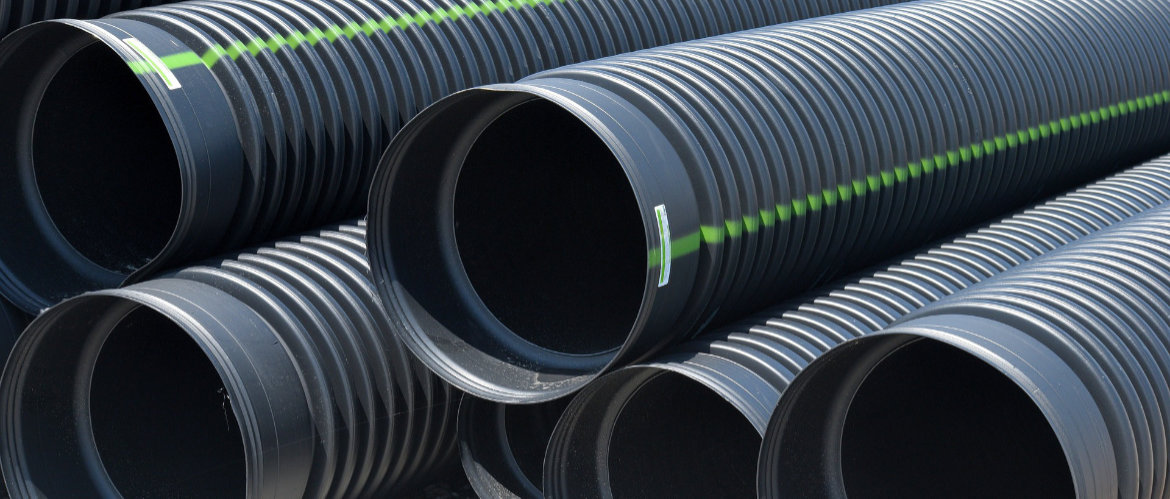

Rigiduct
Twin walled HDPE ducting manufactured in a continuous process where two pipes are extruded simultaneously and welded together. The outer wall is corrugated, the inner wall is smooth. BAA Certifies, compliant with ENATS 12-24 and approved as Class 2 by the Electricity Distribution Network Operator (DNO) companies in Great Britain.
Joiners and bends (90°, 45°, 22.5° and 11.25°) are generally in black.
| ID/OD | Length | Elec | Gas | Water | Mway | Street | CCTV | Coupler | Bends |
|---|---|---|---|---|---|---|---|---|---|
| 100/118 | 6m | Y | Y | Y | Y | Y | Y | Y | Y |
| 125/148 | 6m | Y | N | N | N | N | N | Y | Y |
| 125/148 | 3m | Y | N | N | N | N | N | Y | N |
| 150/177 | 6m | Y | Y | Y | Y | N | N | Y | Y |
Polyduct
This is a Class 3 product designed to meet ENATS 12-24 requirements and the standards set by the Electricity Distribution Network Operator (DNO) companies in Great Britain. It has high impact resistance, exceptional durability and can be used in open trench and trenchless applications.
The flexibility of the coiled duct eliminates the need for special bends.
| ID/OD | Length | Elec | Coupler | Hockey stick |
|---|---|---|---|---|
| 32/37 | 25m | Y | Y | Y |
| 32/37 | 50m | Y | Y | Y |
| 32/27 | 100m | Y | Y | Y |
| 38/44 | 25m | Y | Y | Y |
| 38/44 | 50m | Y | Y | Y |
| 38/44 | 100m | Y | Y | Y |
| 50/60 | 25m | Y | Y | Y |
| 50/60 | 50m | Y | Y | Y |
Essentials

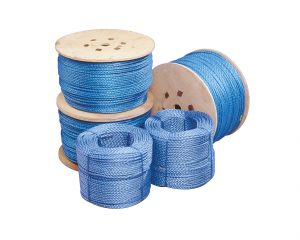

We carry as stock items underground marker tapes for gas, electric and water and draw cord in 220m and 500m lengths.
|
|
 |
 |
